Indoor touchscreen kiosk

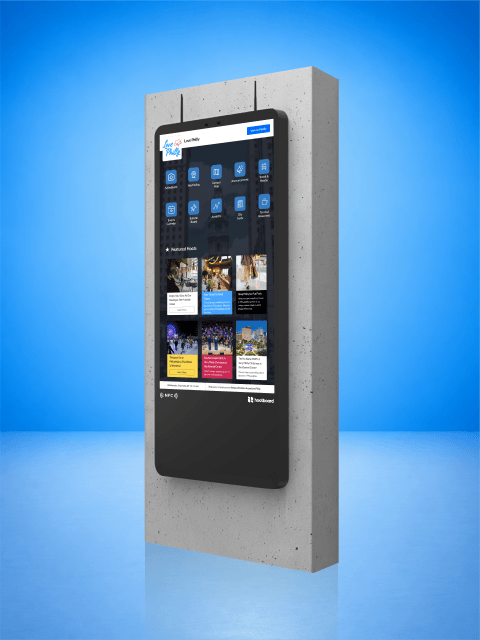

HootBoard AirX Wall Mount
The all-in-one indoor digital engagement kiosk, mounted on a wall. Transform any space into an interactive hub of information, connection and engagement.
HootBoard OS included, pre-loaded and ready to run.
Secure checkout by HubSpot. Need a formal quote instead? Just ask.
- Live in 30 minutes from unboxing — no technician needed
- Ships ready to run, with HootBoard OS already on it
- 24/7 support, included
SKU AIRX-55-WALL-BLK · 55" · Black
- UHD touchscreen
- 4KUHD touchscreen
- Brightness
- 500 nitsBrightness
- Rated touches
- 60MRated touches
- Unboxing to live
- 30 minUnboxing to live
Works with the systems you already run
- Simpleview
- Tempest
- CivicPlus
- GovStack
- Google Calendar
- Eventbrite
- YouTube
- RSS feeds
- Canva
- Zapier

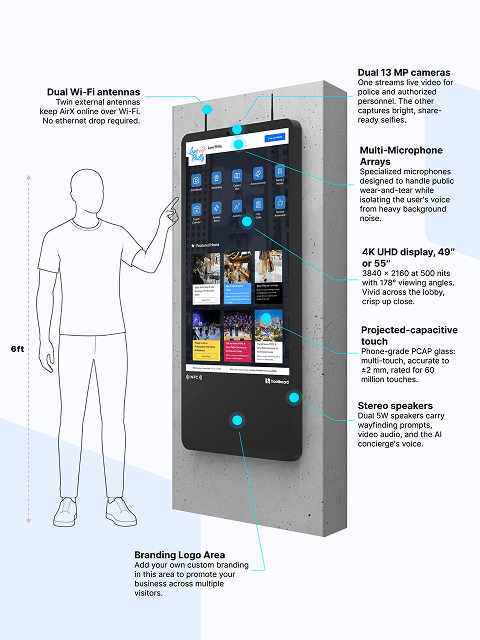

Every detail, considered
- Dual Wi-Fi antennas
- Twin external antennas keep AirX online over Wi-Fi. No ethernet drop required.
- Dual 13 MP cameras
- One streams live video for police and authorized personnel. The other captures bright, share-ready selfies.
- Multi-microphone arrays
- Specialized microphones designed to handle public wear and tear while isolating the user's voice from heavy background noise.
- 4K UHD display, 49" or 55"
- 3840 × 2160 at 500 nits with 178° viewing angles. Vivid across the lobby, crisp up close.
- Projected-capacitive touch
- Phone-grade PCAP glass: multi-touch, accurate to ±2 mm, rated for 60 million touches.
- Stereo speakers
- Dual 5 W speakers carry wayfinding prompts, video audio, and the AI concierge's voice.
- Branding logo area
- Add your own custom branding in this area to promote your business across multiple visitors.
HootBoard OS, included
A screen is hardware. This is a destination.
Every AirX Wall Mount ships with the software already on it. No integrator, no separate CMS contract, nothing to build.
City guide
Curated things to do, places to eat, and the hidden gems only locals know.
Interactive wayfinding
Searchable maps that show visitors exactly how to get where they are going.
Events calendar
Auto-synced from Google Calendar or Eventbrite. Nobody has to remember to update it.
Selfie wall
The built-in camera turns visitors into ambassadors, on your feed and theirs.
Local business promotion
Put the partners and businesses you want visitors to find on the screen.
Visitor analytics
See what your visitors searched for and what they opened.
Specifications
Every number, in one place
No spec sheet to request, no gated PDF. If something you need isn't here, ask us on a call.
Display
- Screen size
- 49" or 55" LCD
- Resolution
- 3840 × 2160, 4K UHD
- Brightness
- 500 cd/m²
- Contrast ratio
- 1500:1
- Viewing angle
- 178° / 178°
- Colors
- 16.7M
- Response
- 5 ms
Touch
- Technology
- Projected capacitive (PCAP)
- Accuracy
- ±2 mm
- Transmittance
- 92%
- Multi-touch
- Yes
- Touch response
- 10 ms
- Rated lifetime
- 60 million touches minimum
PC
- CPU
- Intel® Core™ i7-12650H (12th generation)
- Storage
- 256 GB M.2 SSD
- RAM
- 16 GB DDR4-3200
- Graphics
- Intel® Iris® Xe Graphics
Connectivity
- Cameras
- 2 × 13 MP: live feed and selfies
- Wi-Fi
- Built-in, dual external antennas
- Ethernet
- RJ45
- USB
- 4 ports
- Video out
- HDMI
- Audio
- 2 × 5 W speakers, 3.5 mm line out
Power
- Input
- AC 100–240 V, 50/60 Hz
- Consumption
- Up to 150 W, under 5 W standby
- Cable
- 1.5 m power cable included
Physical
- Colors
- Black, White
- Finish
- Glossy paint
- Mounting
- Wall-mount brackets included
- Environment
- Indoor, 0–40 °C, up to 90% RH non-condensing
Dimensions
| Measurement | 49" model | 55" model |
|---|---|---|
| Front width | 680 mm | 780 mm |
| Body height | 1520 mm | 1650 mm |
| Body depth | 60 mm | 50 mm |
| Screen width | 604.80 mm | 680.40 mm |
| Screen height | 1073.60 mm | 1209.50 mm |
| Logo area width | 406 mm | 572 mm |
| Logo area height | 152 mm | 292 mm |
For reference only, from the supplied engineering drawings. Measure your kiosk before printing or applying a wrap.
What's in the box
- Display
- Wall-mount brackets
- Two Wi-Fi antennas
- Remote
- Power cable
- M8 hardware
- HootBoard OS, pre-loaded

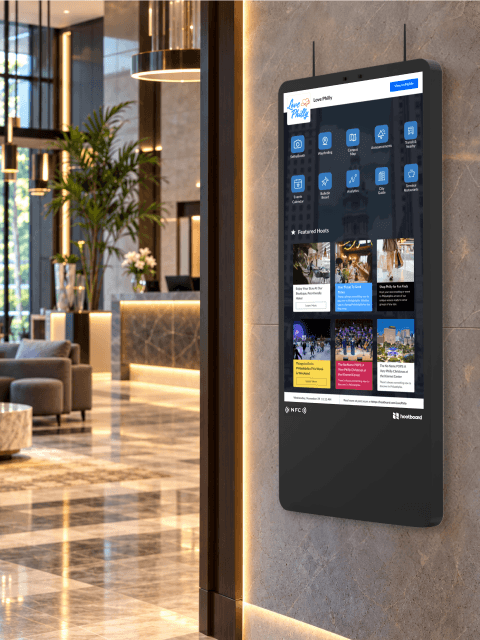

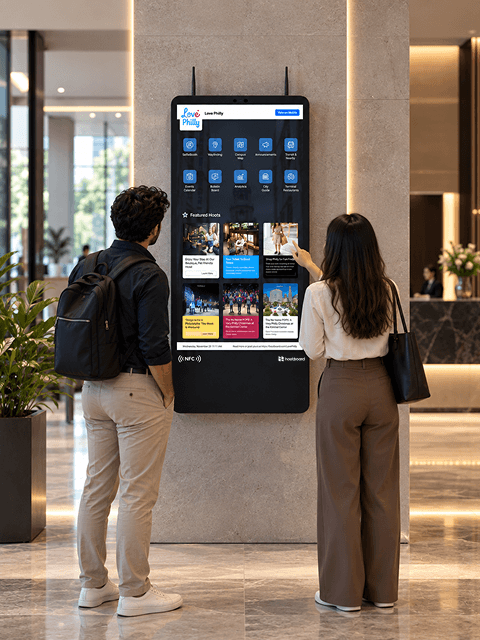

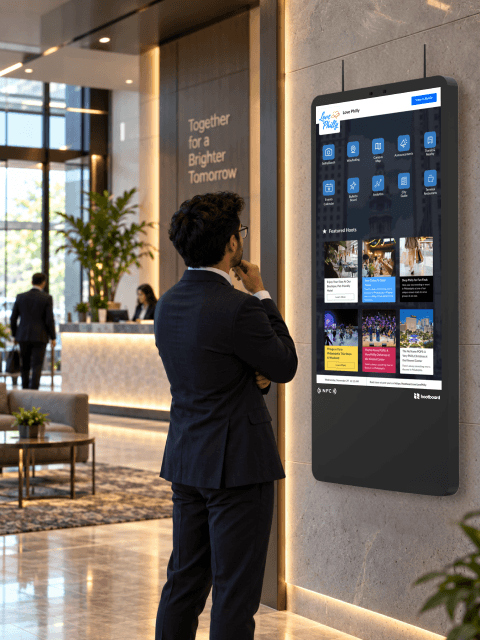

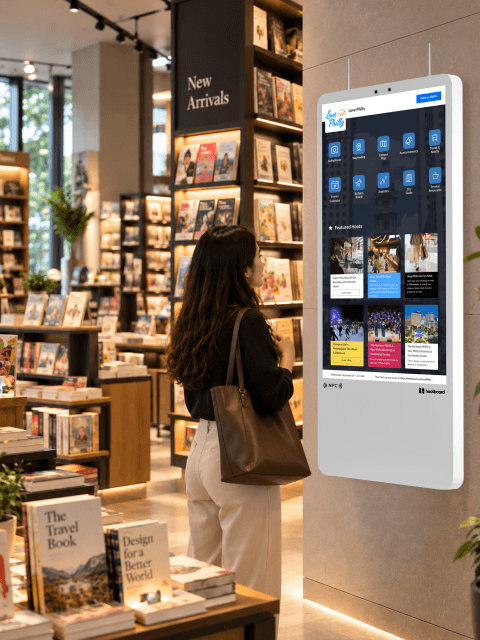

The HootBoard AirX Wall Mount, in place
FAQ
Questions worth asking
Still stuck on something? A specialist can walk you through it in twenty minutes.
You might also consider

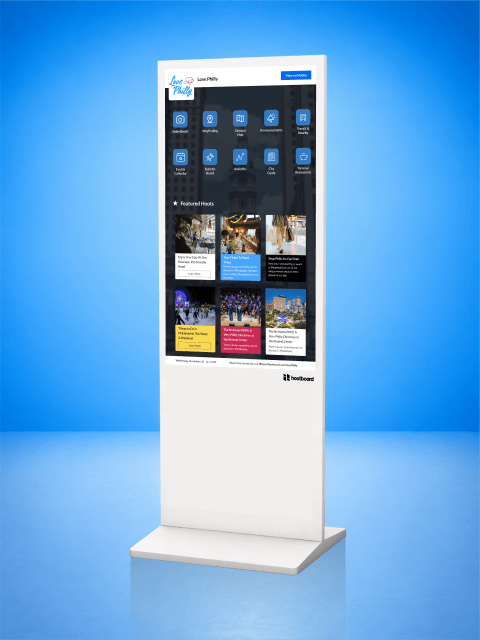

HootBoard AirX Floor Stand
Indoor
From$4,199
Freestanding indoor 4K touchscreen kiosk, 49" or 55", in black or white, with HootBoard OS pre-loaded.
49" or 55"Black or White

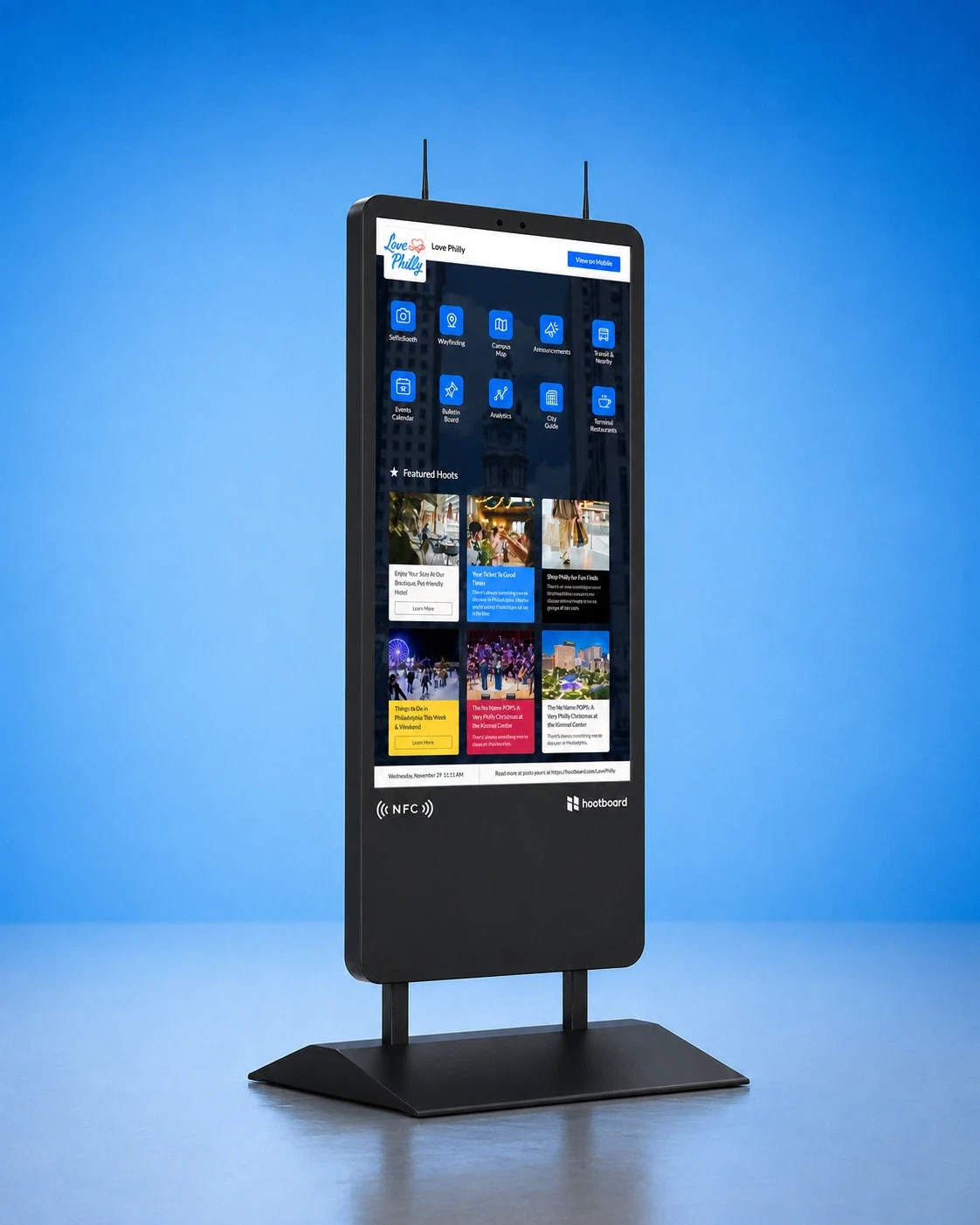

HootBoard Glide
