Outdoor touchscreen kiosk
HootBoard Versi Wall Mount
Built for the outdoors. Built to perform. Built to connect.
HootBoard OS included, pre-loaded and ready to run.
Secure checkout by HubSpot. Need a formal quote instead? Just ask.
- 3500 nits, clear even in bright sunlight
- IP66-rated against the elements
- Dual-band Wi-Fi, with 4G as an option
- 24/7 support, included
SKU VERSI-55-WALL-BLK · 55" · Black
- Ultra-high brightness
- 3500 nitsUltra-high brightness
- Weatherproof
- IP66Weatherproof
- Slim bezel
- 26 mmSlim bezel
- Rated operation
- 24/7Rated operation
Works with the systems you already run
- Simpleview
- Tempest
- CivicPlus
- GovStack
- Google Calendar
- Eventbrite
- YouTube
- RSS feeds
- Canva
- Zapier

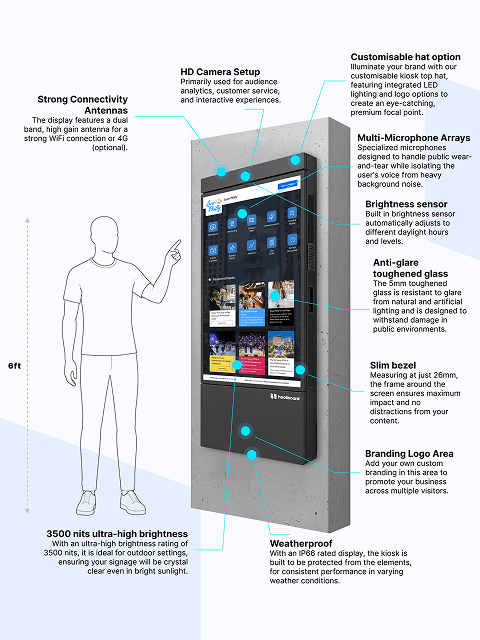

Every detail, considered
- Customisable hat option
- Illuminate your brand with a customisable kiosk top hat, with integrated LED lighting and logo options for an eye-catching, premium focal point.
- 3500 nits ultra-high brightness
- Ideal for outdoor settings, so your signage stays crystal clear even in bright sunlight.
- Weatherproof
- An IP66-rated display protects the kiosk from the elements, for consistent performance in varying weather.
- Brightness sensor
- A built-in sensor automatically adjusts the screen to different daylight hours and levels.
- Anti-glare toughened glass
- 5 mm toughened glass resists glare from natural and artificial light and is designed to withstand damage in public environments.
- Slim bezel
- At just 26 mm, the frame around the screen keeps the focus on your content.
- Strong connectivity antennas
- A dual-band, high-gain antenna for a strong Wi-Fi connection, or 4G as an option.
- HD camera setup
- Primarily used for audience analytics, customer service, and interactive experiences.
- Multi-microphone arrays
- Specialized microphones designed to handle public wear and tear while isolating the user's voice from heavy background noise.
- Branding logo area
- Add your own custom branding in this area to promote your business across multiple visitors.
HootBoard OS, included
A screen is hardware. This is a destination.
Every Versi Wall Mount ships with the software already on it. No integrator, no separate CMS contract, nothing to build.
City guide
Curated things to do, places to eat, and the hidden gems only locals know.
Interactive wayfinding
Searchable maps that show visitors exactly how to get where they are going.
Events calendar
Auto-synced from Google Calendar or Eventbrite. Nobody has to remember to update it.
Selfie wall
The built-in camera turns visitors into ambassadors, on your feed and theirs.
Local business promotion
Put the partners and businesses you want visitors to find on the screen.
Visitor analytics
See what your visitors searched for and what they opened.
Specifications
Every number, in one place
No spec sheet to request, no gated PDF. If something you need isn't here, ask us on a call.
Panel
- Screen size
- 55" or 65"
- Resolution
- 1920 × 1080
- Brightness
- 3500 cd/m²
- Contrast ratio
- 1200:1
- Viewing angles
- 178° V / 178° H
- Color depth
- 16.7M
- Response time
- 6 ms
- Lifespan
- Over 50,000 hours
- Display scale
- 16:9
- Operation
- 24/7
- Touch screen
- Projected capacitive (PCAP)
Power and environment
- Input voltage
- AC 110–240 V, 50/60 Hz
- Power consumption
- 220 W or less
- Operating temperature
- −10 °C to 50 °C (14 °F to 122 °F)
- Storage temperature
- −20 °C to 60 °C (−4 °F to 140 °F)
- Operating humidity
- 10–90%
- Storage humidity
- 10–90%
Mechanical
- Net weight
- 140 kg
- Gross weight
- 155 kg in boxes
- Protection glass
- 5 mm anti-glare toughened glass
- IP rating
- IP66
- Brightness sensor
- Built-in light adjustment sensor
- Color
- Black
Camera module
- Optical sensor
- 1/2.5" CMOS, Sony IMX335
- Effective pixels
- 2594 × 1944
- Power supply
- USB 5 V ±5%
- Max frame rate
- 30 fps at 1944p
- AEC, gain, white balance
- Automatic
- Working temperature
- −10 °C to 60 °C
- Output
- 1944p, 1080p, 720p, VGA, QVGA
Interface
- USB 3.0
- 2
- USB 2.0
- 2
- USB touch
- 1
- HDMI input
- 1
- RJ45
- 1
- AC 100–240 V
- 1
- 12 V DC output
- 1
- Uboot button
- 1
Connectivity
- Wireless
- Dual-band, high-gain Wi-Fi antenna; 4G optional
Dimensions
| Measurement | 55" model | 65" model |
|---|---|---|
| Overall height | 1766 mm | 1816 mm |
| Front width | 733 mm | 866 mm |
| Body depth | 258 mm | 305 mm |
| Top hat | 100 mm | 100 mm |
| Screen width | 680 mm | 805 mm |
| Screen height | 1210 mm | 1429 mm |
| Logo area width | 550 mm | 650 mm |
| Logo area height | 300 mm | 350 mm |
For reference only, from the supplied engineering drawings. Measure your kiosk before printing or applying a wrap.

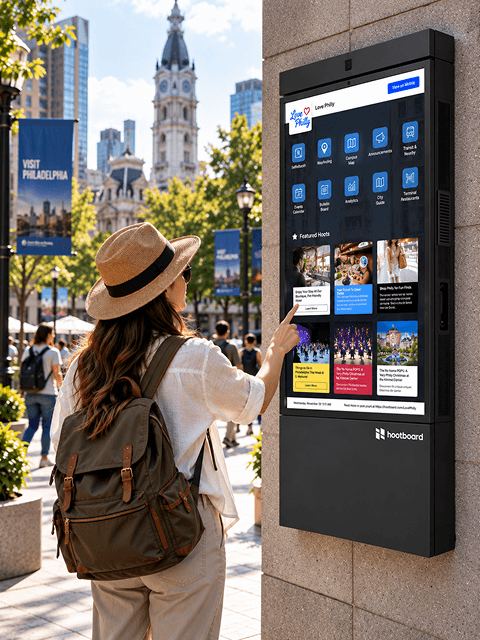

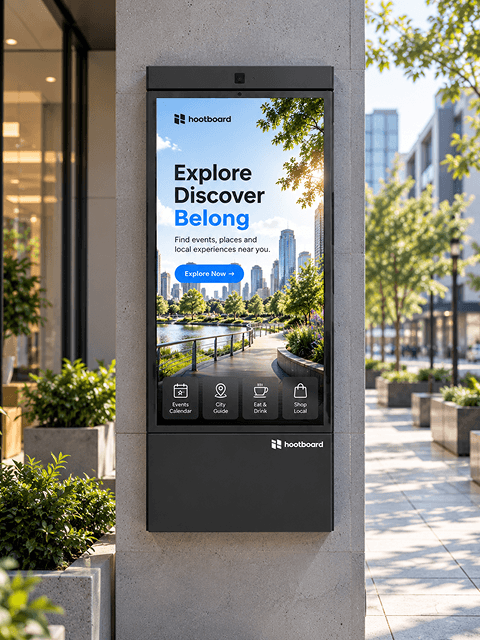

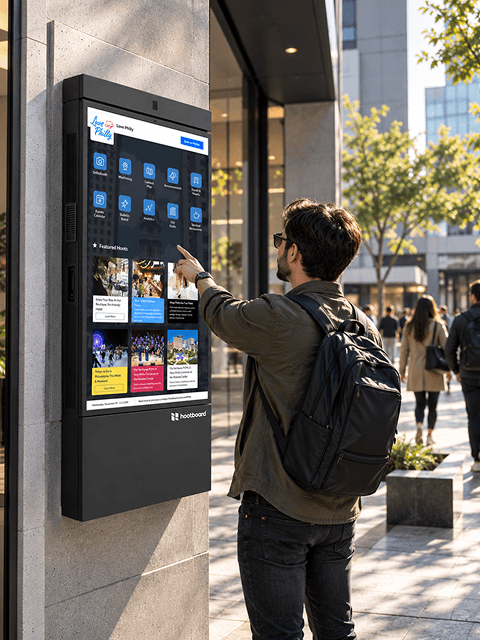

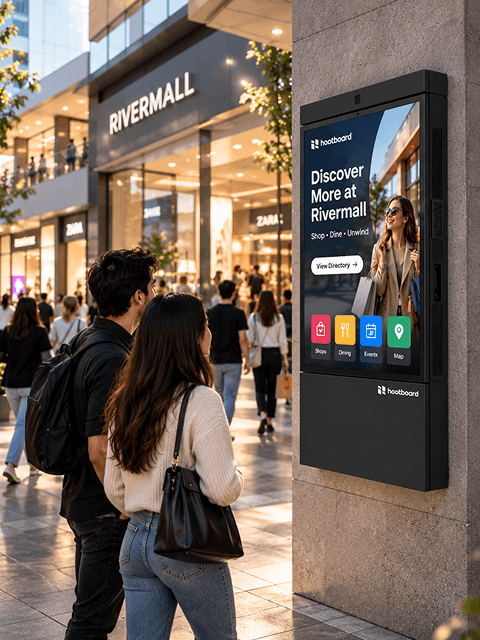

The HootBoard Versi Wall Mount, in place
